Features

• VSP Input Series

Feature

• Applicable to AC100V to AC240V
• Variable motor speed control using analog speed command signal (VSP signal)
• Saving space by integrating a 3-phase distribution circuit, gate drive circuits and output devices into a single package
• Enhanced protection functions such as over-current protection

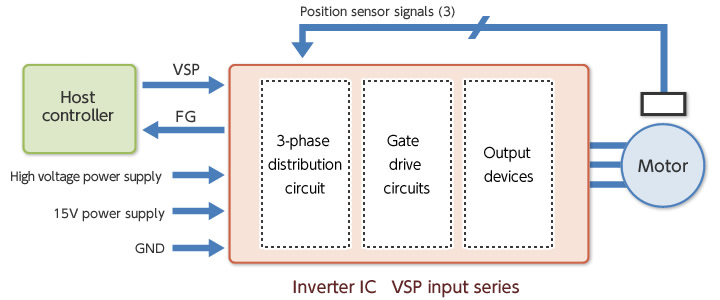

System configuration

*1

VSP：Analog speed command signal
FG：Speed detection signal

• 3-input, 6-input series

Feature

• Applicable to AC100V to AC240V
• Two package configuration of an inverter IC and a Host controller, and suitable for sine wave drive
• Suitable for sine wave drive with or without a position sensor (position sensorless control)
• Saving space by integrating gate drive circuits and output devices into a single package

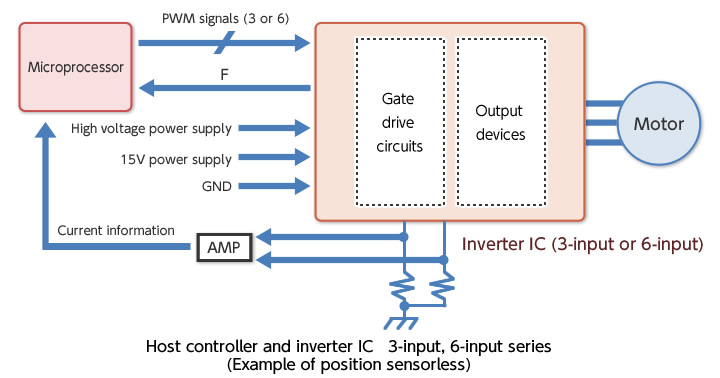

System configuration

• VSP Input Series

Feature

• For 3-phase bridge drive such as IGBT and MOS
• Applicable to AC100V to AC115V
• Variable motor speed control using analog speed command signal (VSP signal)
• Saving space by integrating a 3-phase distribution circuit and gate drive circuits into a single package

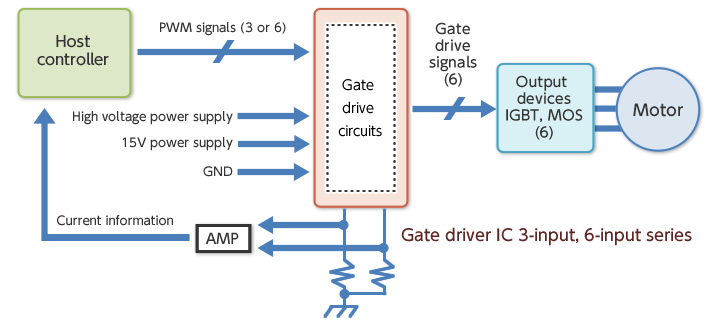

System configuration

*1

VSP：Analog speed command signal
FG：Speed detection signal

• 3-input, 6-input series

Feature

• For 3-phase bridge drive such as IGBT and MOS
• Applicable to AC200V to AC240V, withstand voltage of 620V
• Drives output devices such as IGBT and MOS in accordance with three or six control signals
• Suitable for sine wave drive using a position sensorless vector control or other control

System configuration
